AF Soil Sampler



AF SOIL SAMPLER is particularly suited to agropedological sampling, sedimentology, soil contaminant sampling, ground permeability test.







Specifications:

  • Shallow ultralight soil coring system allowing coring and core storing and handling using 1 meter long reusable sealables split spoon type core liner.

  • Continuous coring up to 1 m.



          AF SOIL SAMPLER components :



  • Coring system: comprending corer and split spoon liner;

  • Energizer;

  • Recovery system.

CORING SYSTEM:

Coring pipe:  Special thin walled steel with tempered and hardned ring bit.


Liner: Split spoon tipe reusable, special light alloy engineered for samples handling and storing without any further dedicated container.


ENERGIZER:

Electric or gas powered demolishing light hummer (6-12 J/strike).



 RECOVERY SYSTEM:

Light Jack (pull 1200 kg - 2600 lb).

TECHNICAL SPECIFICATION:



  • Drilling system: Hammering;

  • Operating depth: Standard up to 1 m (3 ft);

  • Core diameter: 42 mm (1.65 in);

  • Minimum operating crew: N° 1 operator;

  • Coring and recovering required max time: 6 minutes with gas   powered hammer, 15 minutes using hand operated axial driven hummer.

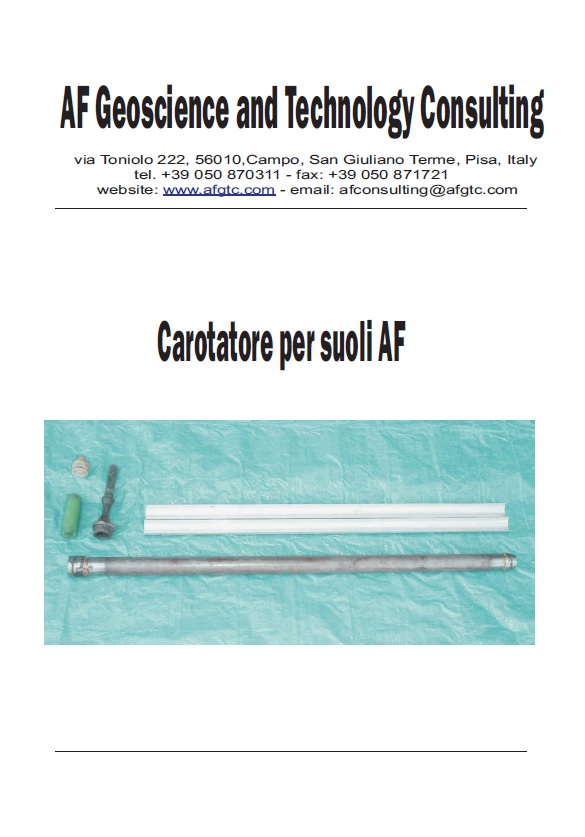

AF Soil Sampler CATALOG
